Who Owns the Die? Navigating OEM Metal Stamping Tooling and Contract Clauses

Why Custom Die Ownership Is the Real Starting Point of Metal Stamping Sourcing

Ownership of a custom progressive die is ultimately decided by physical custody, not by the paid-in-full stamp on your tooling invoice. Most procurement teams sweat unit pricing and tolerances during the RFQ phase, but ignore who legally and physically controls the actual tool steel until something goes wrong. That is Why Custom Die Ownership is the Real Starting Point of any successful high-volume program. For any major program in Metal Stamping Sourcing Physical custody of the tool is what determines whether you can walk away from an underperforming vendor or if your product line is held hostage. Many overseas suppliers rely on unlisted exit fees, proprietary CAD withholding, or storage clauses to keep a tool inside their walls, turning a paid asset into an unrecoverable deposit.

This custody gap triggers catastrophic delays the moment engineering changes conflict with factory production schedules. If a supplier’s internal toolroom sits idle waiting for design-for-manufacturability (DFM) sign-offs, the delay does not simply slide your delivery date out by three days; it breaks the plant’s entire press allocation calendar. High-tonnage stamping presses are scheduled weeks in advance. A missed window means your project gets bumped to the back of the queue, halting downstream assembly lines for months. At WenXinDa, we address this up front: our contracts establish that legal title and full, unencrypted 3D CAD files transfer to the buyer upon final tooling milestone payment, even while physical custody remains in our facility for running production. This ensures you can pull your tool and place it with another press shop at any time, without being blocked by missing geometry or exit penalties.

Never sign a tooling purchase order until the contract explicitly confirms you own the unedited 3D CAD tooling geometry with zero relocation penalties.

Tooling Ownership and Lead Time Metrics: Comparing the Four Key Sourcing Models

Choosing the right tooling model is a balance of financial structure and long-term asset mobility.

How do different tooling payment structures affect who legally owns a custom metal stamping die?

Selecting how to finance a progressive die directly dictates your supply chain’s long-term agility. While funding tooling upfront grants immediate physical and legal ownership, alternative models like amortization or shared development split financial risk and intellectual property rights in ways that can restrict your operational leverage.

Sourcing Verdict: Navigating Amortization, Maintenance, and Milestones

The “free tooling” offer remains one of the most common pitfalls in metal stamping. When a supplier amortizes a progressive die into the piece price, they are financing the asset, which legally binds your production to their presses; moving the physical tool early triggers steep exit penalties. To mitigate this risk, ensure your supply contract contains a sliding-scale buyout clause that depreciates the tool’s remaining balance based on actual parts shipped rather than arbitrary flat-rate penalties.

Beyond ownership, operational maintenance dictates whether a tool remains viable over its intended lifecycle. A transparent supplier like WenXinDa manages routine maintenance—such as punch sharpening, die grinding, and replacing nitrogen gas cylinders—directly within the contract, tracking these tasks at predefined stroke milestones. Without these documented wear limits, a buyer risks receiving a degraded, unusable tool if they ever choose to exercise their buyout rights.

To keep lead times on schedule, peg your progress payments to clear technical milestones rather than simple calendar dates. The standard framework for high-precision tooling requires a 30% deposit upon 3D tool design approval, 40% upon the delivery of T1 trial shots, and the final 30% balance only after a Coordinate Measuring Machine (CMM) layout report verifies that all critical dimensions align perfectly with your drawings.

Matching Stamping Demands to the Right Tooling Setup: Two Operational Realities

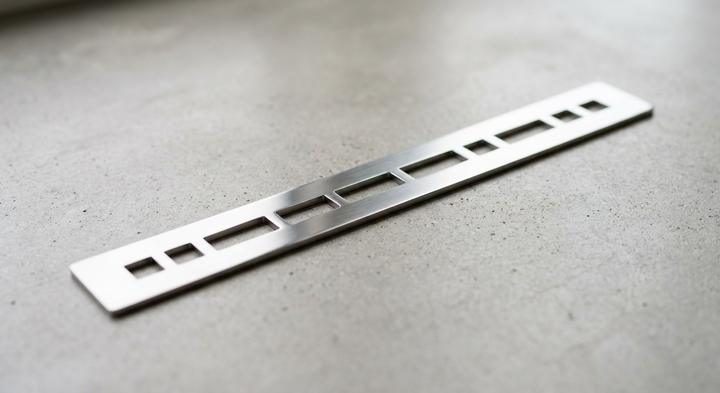

Precision runs require flawless tool design to maintain efficiency across high volumes.

A tooling engineer inspects the first strip off a progressive press at 6:00 AM, looking for micro-burrs on a 0.2 mm copper-alloy terminal pin run at 140 strokes per minute. This is where high-speed production realities hit the spreadsheet. If the tool is under-built, a three-hour press stoppage to polish a chipped punch costs more than the tooling discount you fought for during procurement. If the tool is over-designed for a product that only sells five thousand units a year, that expensive tool steel will spend its life sitting on a shelf gathering dust. Sourcing metal stamping requires balancing Two Operational Realities The physical volume of your contract and the technical precision your part geometry demands.

Scenario A: High-Volume Precision Runs

When an electronics OEM scales production of tight-tolerance grid connectors to hundreds of thousands of units, press downtime translates directly to thousands of dollars of lost revenue per hour. We recommend progressive dies specially built for Volume Precision Runs When press downtime is simply too costly, utilizing premium powder-metallurgy tool steel and integrated acoustic sensors to stop the press before a misfeed destroys a punch. At WenXinDa, we recognize that high-volume sourcing introduces a distinct risk once the tool is built and operating overseas: protecting proprietary geometry. Smart buyers mitigate this by crafting clear contract clauses that legally prohibit the contract manufacturer from using your custom progressive die to run look-alike parts for local competitors during off-shifts. Additionally, physical asset auditing is vital to confirm your tool is used only for your runs. This means welding heavy steel nameplates with deeply stamped serial numbers directly to the die shoe, coupled with requiring quarterly high-resolution photos of the tool in storage. These audits ensure your high-value production asset remains secure, verified, and running only your authorized purchase orders.

Scenario B: Short-Run Structural Parts

A different physical calculation applies when you select to Run Structural Parts When the total volume is capped at a few thousand units, such as heavy-gauge support brackets. Selecting simple stage or manual transfer dies for low-volume brackets allows procurement teams to prioritize lower upfront tooling costs over continuous press speed. In this environment, paying an operator to manually move parts between four separate individual presses makes perfect economic sense. The unit cost is undeniably higher, but that premium is a fraction of the cost required to amortize a forty-thousand-dollar progressive tool that only runs for three hours a year. The rule of thumb is simple: only amortize custom tooling if the projected run volume will retire the entire development cost within eighteen months, otherwise pay the higher piece price and protect your cash flow.

Where Tooling Agreements Fall Apart: Three Common Sourcing Blind Spots

Contractual bottlenecks will kill your production schedule faster than any press-side mechanical failure. While procurement teams naturally focus on the upfront price of a progressive die, they routinely leave the transfer and ownership terms unwritten. This structural oversight turns tooling into a hostage situation the moment a press shop struggles. If you do not lock down the legal and technical boundaries of your tool steel before the first coil of metal is fed, you have essentially handed your manufacturing agility over to a third party.

Amortizing tooling costs into the piece price protects upfront capital without adding supply chain risk.

Zero-down or amortized tooling agreements usually mean the buyer has zero legal claim to the progressive die blocks until a massive, multi-year production volume is cleared. If the press shop’s quality drifts or they miss delivery dates, you cannot simply pull the tool and move it to a backup supplier—you are trapped by a steep, non-negotiated exit fee or forced to buy out the tool at an inflated rate. Real protection means drafting a prorated buyout schedule on day one, so you can pay the depreciated balance and take physical control of your asset immediately if the relationship goes south.

A thirty-day tooling timeline ensures production parts will ship by week five.

Tool fabrication is never a simple linear timeline, yet standard quotes regularly omit the ten to fifteen days required for iterative tryouts, heat treatment, and strip optimization. A progressive die does not emerge from the CNC mill ready to run at high speed; it requires multiple trial runs (T1 through T3) to compensate for material springback and dial in the feed pitch. To keep projects honest, structure your tooling payments around physical milestone sign-offs—such as die design lock, T1 strip approval, and full CMM dimensional layout verification—rather than optimistic calendar dates on a Gantt chart.

Physical custody of the tool is all that is required to move production to a backup press shop.

Auditing a Supplier’s Tooling Shop: What to Ask on the Factory Floor

An on-site tooling shop is critical for rapid adjustments, maintenance, and quality control.

How can you verify that a metal stamping supplier actually designs, cuts, and services their progressive dies in-house instead of quietly outsourcing critical toolroom work to a third party?

To find out, bypass the polished reception lobby and conduct a targeted walk of the Tooling Shop, checking machine status, physical calibration logs, and real-time maintenance boards while using this Factory Floor How guide to spot where paper certifications disconnect from actual shop capabilities.

The Tooling Shop Audit

When we run trials in our own facility, we don’t ask our clients to take tooling precision on faith. We deliver the physical strip layout along with complete, step-by-step CMM data so you can verify the alignment and geometry before the first production run ever hits the press floor. This level of floor-level evidence is exactly what prevents shipping delays and ensures the die you paid for is the die that is actually running your parts.

Securing Your Tooling Assets: Key Steps Before Signing the PO

Now that your volume and tolerance limits have mapped the design to either high-speed progressive dies or manual stage tools, you have to lock down physical custody of the steel before issuing the PO. It is a common mistake to assume a paid invoice guarantees ownership; if your contract lacks a specific exit clause without penalties, the toolroom can effectively hold your line hostage during a pricing dispute. Clear contracts backed by a supplier who actually runs an in-house toolroom—rather than outsourcing to a third-party shop down the road—is your only real protection against missed delivery dates. At WenXinDa, we write these ownership terms plainly into our supply agreements. We guarantee that you own the tools, including the actual 3D CAD design files, the moment the final milestone payment clears. This means if you need to pull your tools to run elsewhere, there are no exit fees, no legal hurdles, and no missing design geometry.

We back this transparency with actual shop-floor capability. Our on-site toolroom designs, builds, and maintains custom progressive and stage dies, running them across a press fleet that goes up to 800 tons to handle everything from heavy structural parts to high-volume precision stampings. Because we build and run under the same roof, we do not have to inflate our tooling quotes to cover third-party margins or hide maintenance liabilities in your unit price. To get a realistic sense of what your project will actually cost to produce, skip the generic quoting calculators. Send our engineering team your 3D CAD files today. We will run a real design-for-manufacturability review, highlight any areas where your design will cause unnecessary die wear, and provide a detailed, uninflated tooling estimate that you can take straight to your budgeting meeting.
